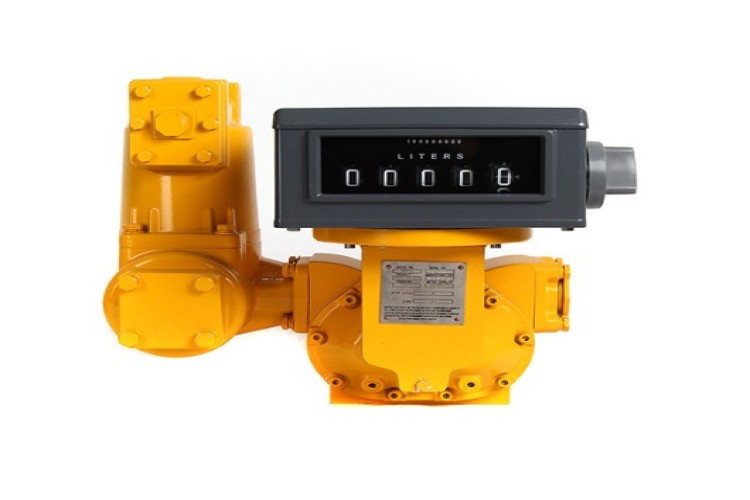

LPG PD METER

Positive Dispacement Flow Meter

Mesuremetn Range :     38-380L/min

Working Pressure :10PSI

Diameter : 2"

Accuracy : 0.20%

M series positive displacement flow meters are engineered to offer an accurate, trouble-free service life requiring minimal maintenance.

‍

Features & Benefits

1. High accuracy and repeatability.

2. Low maintenance, no metal-to-metal contact in measuring chamber.

3. Low pressure loss, a true gravity flow meter.

4. Choice of aluminium, cast iron, and stainless steel materials of construction.

‍

Typical Applications

Crude Oil, Dairy Products, Fuel, Fuel Oil, Industrial, Chemical, Liquid Fertilizers, Liquified Gasses, Lube Oils, Refined Petroleum Products, etc.

‍
